What is the speed control method of an AC three - phase motor?

As a supplier of AC three-phase motors, I often encounter customers who are curious about the speed control methods of these motors. In this blog post, I'll delve into the various speed control techniques for AC three-phase motors, explaining their principles, advantages, and disadvantages.

1. Variable Frequency Drive (VFD) Method

One of the most popular and effective ways to control the speed of an AC three-phase motor is through a Variable Frequency Drive (VFD). A VFD works by varying the frequency and voltage supplied to the motor. According to the synchronous speed formula of an AC motor, (n_s=\frac{120f}{p}), where (n_s) is the synchronous speed in revolutions per minute (RPM), (f) is the frequency of the power supply, and (p) is the number of poles of the motor. By changing the frequency (f), we can directly adjust the synchronous speed of the motor, and thus the operating speed.

Advantages of VFD:

• Wide speed range: VFDs can provide a wide range of speed control, from very low speeds to the rated speed of the motor. This makes them suitable for applications that require precise speed adjustment, such as conveyor belts, pumps, and fans.
• Energy efficiency: By adjusting the motor speed to match the load requirements, VFDs can significantly reduce energy consumption. For example, in a pumping system, if the flow rate demand decreases, the VFD can reduce the motor speed, which in turn reduces the power consumption.
• Soft start and stop: VFDs allow for smooth acceleration and deceleration of the motor, reducing mechanical stress on the motor and connected equipment. This can extend the lifespan of the motor and other components.

Disadvantages of VFD:

• Higher cost: VFDs are relatively expensive compared to other speed control methods. The initial investment includes the cost of the drive itself, installation, and potential additional equipment such as harmonic filters.
• Complexity: VFDs require proper programming and configuration to operate correctly. Improper settings can lead to motor damage or inefficient operation. Additionally, VFDs generate harmonics, which can cause interference with other electrical equipment in the system.

If you are interested in our General Ac Three Phase Motor, which can be effectively controlled by a VFD, please feel free to contact us for more details.

2. Pole Changing Method

The pole changing method involves changing the number of poles in the motor winding. As mentioned in the synchronous speed formula (n_s=\frac{120f}{p}), changing the number of poles (p) will change the synchronous speed of the motor. This method is achieved by using a special motor winding design that allows for different pole configurations.

Advantages of pole changing:

• Simple and reliable: Pole changing is a relatively simple and reliable speed control method. It does not require additional complex control equipment like VFDs.
• High efficiency: Since there is no additional power conversion equipment, the motor operates with high efficiency at each pole configuration.

Disadvantages of pole changing:

• Limited speed steps: Pole changing can only provide a few discrete speed settings. For example, a motor may be designed to operate at two or three different speeds by changing the pole configuration. This is not suitable for applications that require continuous speed adjustment.
• Motor design complexity: The motor needs to be specially designed for pole changing, which increases the manufacturing cost and complexity.

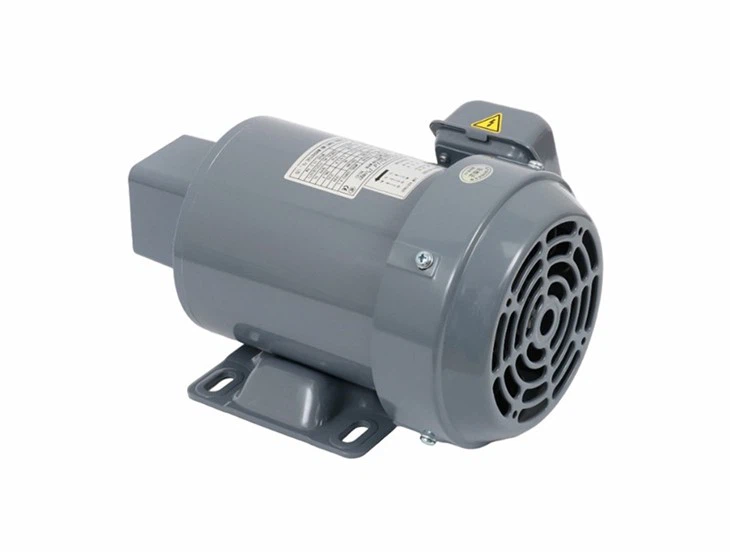

Our 4 Pole Ac Three Phase Motor can be designed with the pole changing feature. If you have requirements for such motors, we can provide customized solutions.

3. Slip Control Method

The slip control method is based on the fact that the actual speed of an AC induction motor is slightly less than the synchronous speed, and the difference is called the slip. By adjusting the slip, we can control the motor speed. This can be achieved through methods such as rotor resistance control and stator voltage control.

Rotor Resistance Control

In a wound-rotor induction motor, external resistors can be added to the rotor circuit. By changing the value of the rotor resistance, the slip of the motor can be adjusted, and thus the motor speed.

Advantages of rotor resistance control:

• Simple and inexpensive: This method is relatively simple and does not require expensive control equipment. It is suitable for some low-cost applications.

Disadvantages of rotor resistance control:

• Low efficiency: As the rotor resistance increases, more power is dissipated in the resistors, resulting in lower motor efficiency. This method is not suitable for high-power or long-term continuous operation applications.

Stator Voltage Control

By adjusting the stator voltage supplied to the motor, the slip can also be changed. When the stator voltage is reduced, the motor torque decreases, and the slip increases, resulting in a lower motor speed.

Advantages of stator voltage control:

• Simple control: It is a relatively simple control method that can be implemented using a variable autotransformer or a solid-state voltage controller.

Disadvantages of stator voltage control:

• Limited speed range: Stator voltage control can only provide a limited speed range, and the motor may experience instability at low speeds.

Our AC Three Phase Standard Motor can be used with slip control methods in some specific applications. If you want to know more about how these methods can be applied to our motors, we are here to assist you.

4. Cascade Control Method

The cascade control method involves connecting two or more motors in cascade. The output shaft of one motor is mechanically coupled to the input shaft of another motor. By controlling the speed of one or more of the motors in the cascade, the overall speed of the system can be adjusted.

Advantages of cascade control:

• High power capacity: This method can be used for high-power applications by combining multiple motors.

Disadvantages of cascade control:

• Complexity: Cascade control requires additional motors and mechanical coupling devices, which increases the system complexity and cost. It also requires careful coordination and control of multiple motors.

In conclusion, each speed control method for AC three-phase motors has its own advantages and disadvantages. When choosing a speed control method, factors such as the required speed range, energy efficiency, cost, and application requirements need to be considered. As a professional AC three-phase motor supplier, we have a wide range of motors and can provide customized solutions according to your specific needs. If you are interested in our products or need more information about AC three-phase motor speed control, please feel free to contact us for procurement and negotiation.

References

• Chapman, S. J. (2012). Electric Machinery Fundamentals (5th ed.). McGraw-Hill.
• Fitzgerald, A. E., Kingsley, C., Jr., & Umans, S. D. (2003). Electric Machinery (6th ed.). McGraw-Hill.
