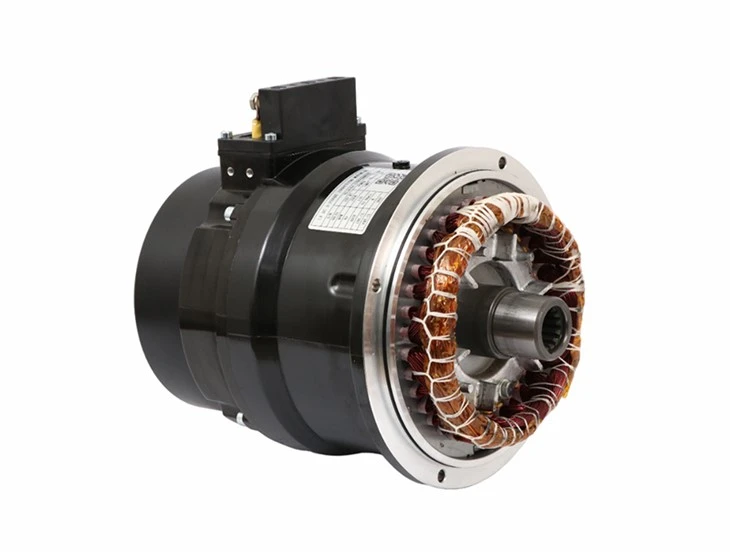

Low Voltage Induction AC Motor
Type: LV AC 3-Phase Induction Motor-L
Usage: electric order picker & work platforms/order pickers/ and different other vehicle
Voltage: 15V AC /customized
Power: 0.68kw
AMPS: 50
Ningbo Zhenhai Yuanyi M&E Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of low voltage induction ac motor in China. If you're going to buy high quality low voltage induction ac motor at low price, welcome to get more information from our factory. Customized orders are welcome.
Introduction
The Low Voltage Induction AC Motor is an electric motor designed to operate on alternating current (AC), typically at a supply voltage of less than 1000 volts, most commonly 400 volts or 690 volts in industrial environments. It is called an induction motor because it uses electromagnetic induction (rather than a direct electrical connection) to produce rotational motion.
Specifications
| Model Number | GS63BLV-4 |
| Type | LV AC 3-Phase Induction Motor-L |
| Usage | Electric order picker & work platforms/order pickers/ and different other vehicle |
| Voltage | 15V AC /customized |
| Power | 0.68kw |
| AMPS | 50 |
| Speed(RPM) | 3600 r/min |
| HZ | 125 |
| Duty | S2 60min |
| INS. Class | H |
| PRT. Class | IP55 |
| INST.SIDE | LEFT |
| Delivery | By sea/By air/By express |
| Payment | TT/Paypal/West Union/LC |
Features
High-efficiency energy conversion
The Low Voltage Induction AC Motor adopt optimized three-phase winding structure and high-quality silicon steel core, which can reduce iron loss and copper loss. The motor efficiency can reach IE3 standard (efficiency higher than 90%), effectively reducing energy consumption and improving operation economy.
Strong adaptability
Our products have good protection performance, with a standard protection level of IP55, which can be upgraded to IP65 according to working conditions, effectively preventing dust and water vapor from intruding, and are suitable for humid, dusty or slightly corrosive environments.
Excellent thermal stability
By optimizing the heat dissipation structure and fan design, the temperature rise of the motor is controlled below the national standard limit when running at full load, improving the overall thermal stability. Especially under the conditions of ambient temperature of 40°C and altitude of less than 1000 meters, the rated power output can still be maintained without attenuation, ensuring continuous operation without performance degradation due to overheating.
